Map points of interest (POIs)

POIs are reference markers essential for navigation, observation, and reporting. Accurate recording using grid references is critical.

  • Tactical POIs: bunkers, trenches, OPs, strongpoints, checkpoints.
  • Strategic POIs: objectives, headquarters (HQs), communications relays, logistics hubs.
  • Natural POIs: distinctive landmarks aiding navigation (e.g., lone tree, unique rock).
  • Civilian POIs: villages, compounds, areas with civilian activity.

Recognise POI symbols on a map

  • Interpret tactical, strategic, natural, and civilian POI markings by referring to the OPORD.
  • Correlate POIs with current mission objectives.

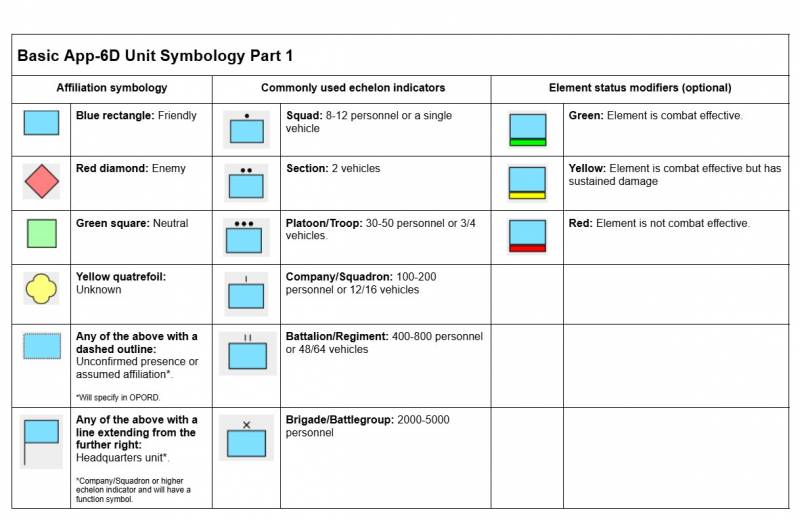

APP-06 (MIL-STD-2525D) symbology part 1

A guide of basic NATO-standard APP-06 symbols used to mark units, equipment, and tactical functions on maps.
A guide of basic NATO-standard APP-06 symbols used to mark units, equipment, and tactical functions on maps.

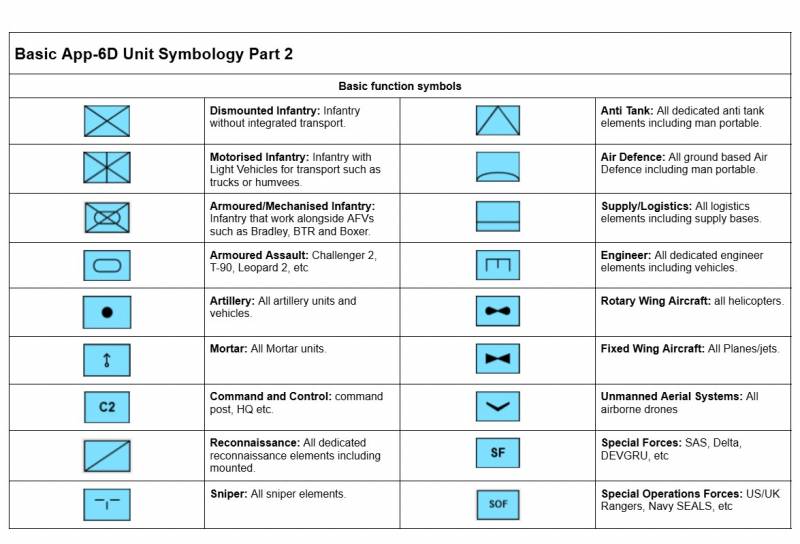

APP-06 (MIL-STD-2525D) symbology part 2

A guide of basic NATO-standard APP-06 symbols used to mark units, equipment, and tactical functions on maps.
A guide of basic NATO-standard APP-06 symbols used to mark units, equipment, and tactical functions on maps.

Recognise basic APP-06 symbols on a map

  • Identify unit size, type, and function from symbols.
  • Distinguish friendly, enemy, neutral, and unknown forces by colour.
  • Understand status indicators such as readiness or engagement.

Apply the correct APP-06 basic symbols

  • Select appropriate symbols for unit type and size.
  • Use correct colour coding for affiliation.
  • Place symbols in correct positions and maintain clarity on overlays and briefs.
